Tool Holder Trolleys

This trolley has been designed to hold large number of tool holders in a compact space. There are total 9 nos. of trays mounted on two panels, one at the top and four on each sides. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. A stainless steel handle is provided for handling the trolley. The metal bin provided comes handy for keeping papers. The overall dimensions are 760L x 620D x 1040H + wheel. 4” castor wheel, 2 nos. fixed and 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs.

Two plain drawers with aluminium checkered plate is provided at the top for keeping tools and measuring instruments. 4 trays, 2 on each sides for keeping tool holders. Tool holders are kept in moulded ABS plastic pockets avoid metal to metal contact. One stainless steel handle is provided for handling the trolley.

Overall dimension are 760L x 490D x 820H + wheel. 4” castor wheel 2 nos. fixed and 2 nos . swivel with brake is provided. Maximum load bearing capacity is 300 kgs.

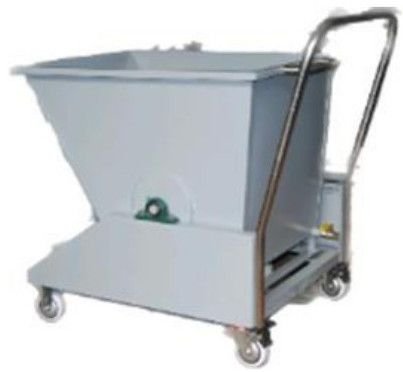

Chip Trolley is designed to collect chips which are generated during processes and comes through conveyor. They are transported to scrap yard and remove from the bin by tilting it. Suitable mechanism is in-built to restrict the rotation when not required. Coolants are drain out through a ball cock valve provided at the bottom. A fine mesh is kept in between to restrict the chips to flow with coolant. 4" castor wheels, 2 nos. fixed and 2 nos. swivel with brake is provided to restrict the movement when not required

This trolley has been designed to protect the tool holders from moisture and dust. Tools are placed on a movable tray for storage and retrieval with a full length drawer with suitable partitions at the top. AluminIum checkered plate at the top for keeping tools and measuring instruments. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. Two sturdy plastic handles are provided for easy handling. Overall dimensions are 875L x 520D x 755H + wheel. 4” castor wheel 2 nos. fixed and 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs

This is the basic model for keeping small quantity of tool holders beside machine with 4 trays - 2 each on either side for keeping tool holders. Aluminium checkered plate at the top for keeping tools and measuring instruments. Tool holders are kept in moulded ABS plastic pocket to avoid metal to metal contact. One stainless steel handle is provided for handling the trolley. Overall dimensions are 760L x 490D x 745H + wheel. 4” castor wheel 2 nos. fixedand 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs.

This is the basic model to transport tools from NC room to the machine. In total, 7 trays are provided, 3 at top and 2 each on either sides. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. One stainless steel handle given for handling the trolley. Overall dimensions are 760L x 490D x 745H + wheel. 4” castor wheel 2 nos. fixed and 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs.

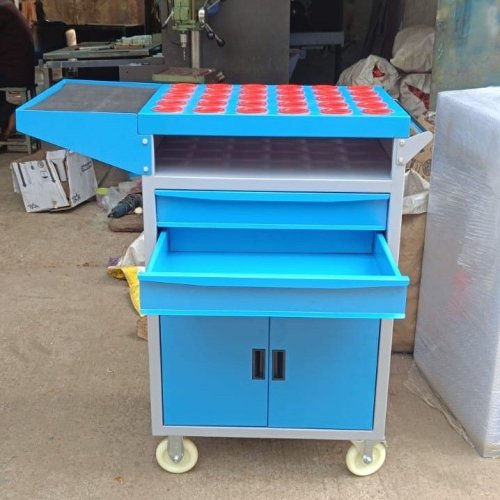

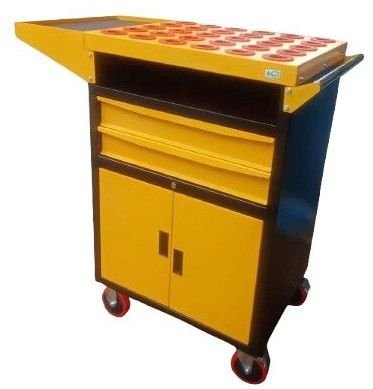

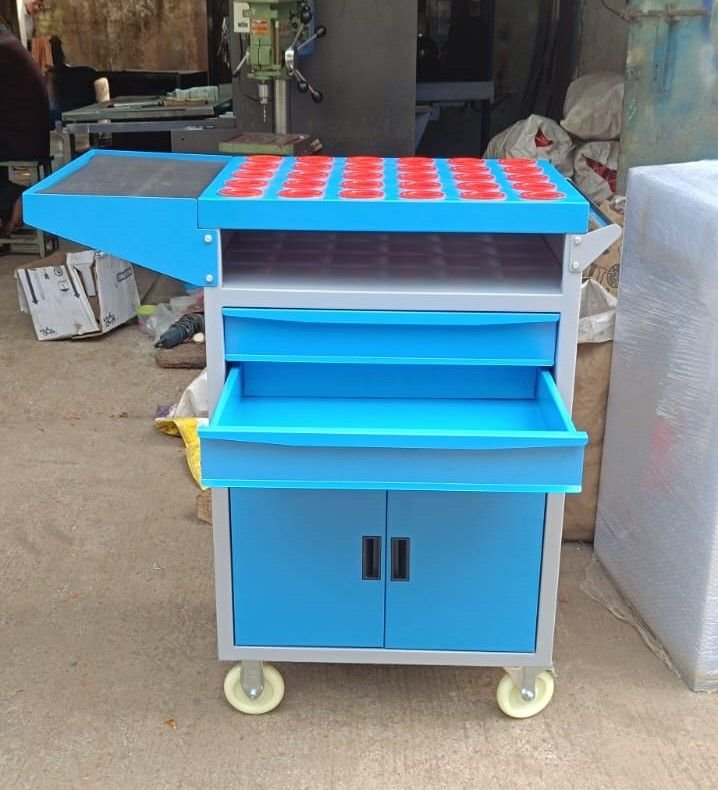

This accessibility aspect stands apart this trolley as the tools can be accessed from both the sides. Trays can be placed as per convenience. They can also be placed on the table by removing from the trolley. A projected tray with rubber mat is provided for keeping tools and measuring instruments. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. One stainless steel handle given for handling the trolley. Overall dimension are 760L + 300 tray x 505D x 740H + wheel. 4” castor wheel 2 nos. fixed and 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs

This is one of the most economic model for transportation and storage of tool holders. A projected tray with rubber mat is provided for keeping tools and measuring instruments. Tool holders are kept in moulded ABS plastic pockets to avoid metal to metal contact. Two rigid plastic handles are given for handling the trolley. Overall dimensions are 755L + 300 tray x 500D x 700H + wheel. 4” castor wheel 2 nos. fixed and 2 nos. swivel with brake is provided. Maximum load bearing capacity is 300 kgs .
